High-Quality J30J Series Micro D Connector - Reliable & Secure for Demanding Applications
Description: The J30J Series Connector is a high-quality Micro D Connector designed for various applications that require reliable and secure connections. With a durable construction and advanced features, this connector is ideal for demanding environments where performance is crucial.
Elite Electronic J30J Plug have 9pin 15pin 21pin 25pin 31pin 37pin 51pin 66pin 74pin 100pin, the J30J Series Connector is a versatile solution for applications that require a high-density connector with a rectangular design. The pins configuration allows for the transmission of multiple signals or data streams, making it ideal for complex connectivity needs.
Whether used in industrial equipment, aerospace systems, medical devices, or other critical applications, the J30J Series Connector offers a robust and dependable connection solution. Its compact size and reliable performance make it a preferred choice for engineers and designers seeking a reliable Micro D Connector for their projects.
Features:
- Center Conductor: Made of Copper Alloy with Gold Plating, ensuring excellent conductivity and resistance to corrosion.
- Insulation Resistance: Meets the standard of ≥5000MΩ, providing reliable insulation to prevent signal interference.
- Mating Accessories: Compatible with a wide range of accessories including P, P0, P2, P3, P4, P5, P7, P8, P9, P10, P11, and P14, offering versatility in connectivity options.
- DWV: Withstands up to 800V Dielectric Withstanding Voltage, ensuring safety and reliability in high-voltage applications.
Technical Parameters:
| Contact/Pin | 15-pins |
| Insulation Resistance | ≥5000MΩ |
| Contact Gender | Female Socket |
| DWV | 800V |
| Insulation Dielectric | PBT |
| Outer Conductor | Aluminum Alloy, Nickle Plating |
| Center Conductor | Copper Alloy, Gold Plating |
| Operating/Storage Temp | -55℃~+125℃ |
| Pitch Distance | 1.27 x 2.54 |
| Termination Type | Right Angle PCB Contact |

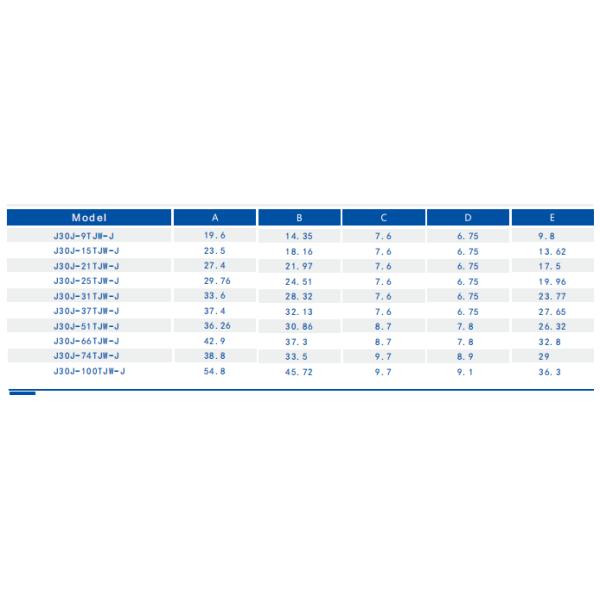

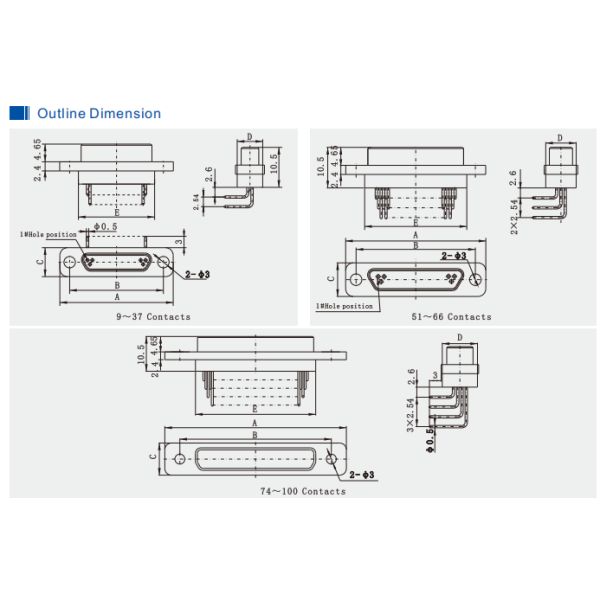

Outline Dimension of J30J Micro D Connectors 15 pins Right Angle PCB Contact, pitch distance 1.27*2.54
Details of Dimension:
The P7 Assesories:

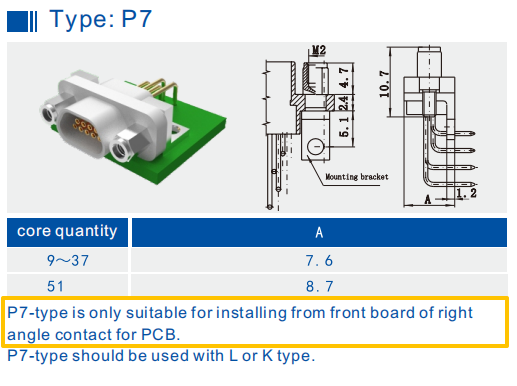

P7-type is only suitable for installing from front board of right angle contact for PCB.
The P14 Assesories:
P14-type is only suitable for installing from back board of right angle contact for PCB.
Applications:
Applications:
- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres
- Board to Cable
- Medical applications
- Surface Mount (SMT) Board to Cable
