Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

Brand Name : ELT

Model Number : SSMA-JB2G

Certification : RoHS

Place of Origin : Xi'an, China

MOQ : In Stock, MOQ 50 for new production

Price : Depending on the quantity

Payment Terms : T/T or LC

Supply Ability : As requirements

Delivery Time : 5-7 working days for stocked quantity

Packaging Details : 1pcs/plastic bag;100pcs/carton

Product Name : Straight SSMA Male Cable Connector

Model : SSMA-JB2G

Frequency Range : 0.3MHz-18GHz

Impedance : 50Ω

DWV : 750V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Mating Cable : .086 Cable

Outer Conductor : Stainless Steel, Passivation

Insulators : PTFE

Samples : In stock

Contact Now

50Ω Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz Mating for .086 Cable

High-Frequency Performance up to 18GHz

The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.

Key Features:

Compact design - 30% smaller than standard SMA connectors
Wide frequency band operation up to 30GHz
High reliability for demanding applications
Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
Stainless steel screw sleeve/barrel for durability

Interface of SSMA RF Coaxial Connectors

Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

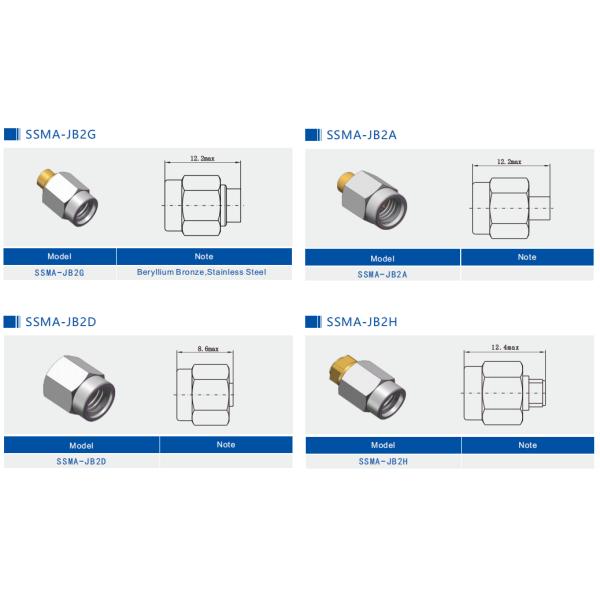

Mini SMA Plug RF Coaxial Cable Connector Dimenstion:

Model No.: SSMA-JB2G

Note: Please check our catalog for more similar models according to your application.

Applications

Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:

Aerospace and aviation systems
Navigation and radar equipment
Communication systems
Measurement instruments
Electronics applications

Packaging and Shipping

Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:

We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.

For additional similar product models information, please check our catalog or contact our sales team at:
